PVC Ball Valve for Water Supply Agriculture Material: PVC/UPVC/CPVC/PPStandard: DIN/BS/ANSI/JIS/CNS/NPT/BSPTPressure: Normal/low pressureTemperature: Normal TemperatureHandle: Butterfly Handle, long handle,etc. Determined by customerColor: Many colors available for choicePacking: Carton, P

Featured Products

PVC Ball Valve for Water Supply Agriculture

Material: PVC/UPVC/CPVC/PP
Standard: DIN/BS/ANSI/JIS/CNS/NPT/BSPT
Pressure: Normal/low pressure
Temperature: Normal Temperature
Handle: Butterfly Handle, long handle,etc. Determined by customer
Color: Many colors available for choice
Packing: Carton, Polybag, Color Box or Customized
SIZE: 1/2"-4"
Delivery port: Ningbo by sea


1. The Drawing Design:

True Union Ball Valve, Double Union Ball Valve, PVC Ball Valve, Plastic Valve
2. Materials:


NO.PartMaterial
1BodyPVC
2Seat SealTPE/TPV/EPDM
3O-RingEPDM/NBR
4BallPP/PVC
5HandlePP/ABS/PVC
6CapPP/ABS/PVC


3. Dimensions (unit: mm)

SIZESocket EndThd./in
DINANSIBS
inchd1d2d1d2d1d2NPTBSPT
1/2"2020.321.2321.5421.321.51414
3/4"2525.326.5726.8726.726.91414
1"3232.333.2733.6533.533.711.511
1-1/4"4040.342.0442.424242.211.511
1-1/2"5050.348.1148.5648.248.411.511
2"6363.360.1760.6360.360.511.511
2-1/2"7575.372.8573.3875.175.3811
3"9090.388.789.3188.889.1811
4"110110.4114.07114.76114.2114.5811


4. Features:

1StandardANSI, DIN, BS
2End Connection TypeSocket end or Thread end
3Size1/2"-4" (20mm-110mm)
4ColorWhite, Grey, Blue
5Working PressurePN10/10kgs/150psi
6Working Temperature-10ºC - 50ºC
7ApplicationsWater supply, Irrigation, Pools building, etc.


5. Application:

True Union Ball Valve, Double Union Ball Valve, PVC Ball Valve, Plastic Valve

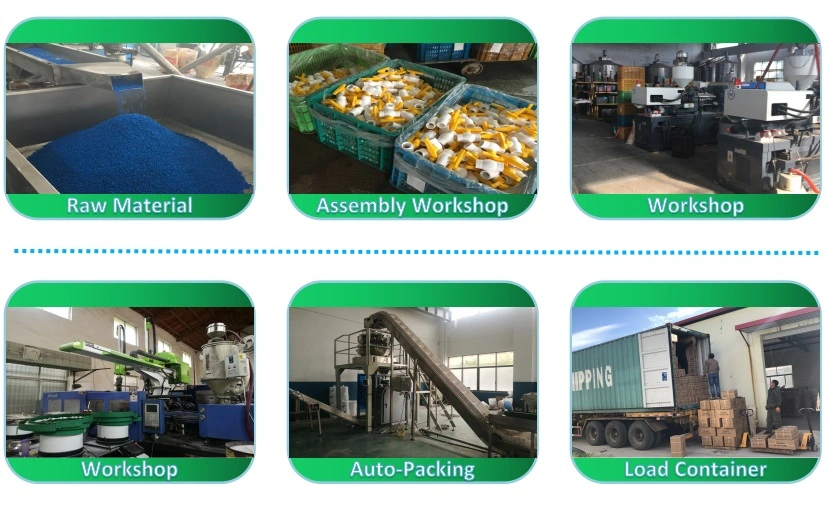

6. Production Department:
True Union Ball Valve, Double Union Ball Valve, PVC Ball Valve, Plastic Valve



True Union Ball Valve, Double Union Ball Valve, PVC Ball Valve, Plastic Valve

 7. Six series of our products:
(1)PVC Valves and Fittings for Water Supply & Agricultural Irrigation
(2)PVC/CPVC/PVDF/PPH Valves and Fittings For Chemical Industry
(3)PP Compression Fittings & PP Clamp Saddle
(4)PP-R Pipes & Fittings (DIN) (cold, hot) water supply
(5)Clear Transparent valve, pipe fittings
(6) DI butterfly valve, Gate valves....

True Union Ball Valve, Double Union Ball Valve, PVC Ball Valve, Plastic Valve

True Union Ball Valve, Double Union Ball Valve, PVC Ball Valve, Plastic ValveTrue Union Ball Valve, Double Union Ball Valve, PVC Ball Valve, Plastic Valve
8. FAQ: (Frequently Asked Questions)

1. What is your MOQ?
Our MOQ is usually 5 CTNS.

2. What is your delivery time?
Our delivery is about 20-30days.

3. What is your payment terms?
We accept T/T, 100% L/C, or West Union and so on.

4. Could you provide free samples?
Usually, we offer free samples, customer bear the freight cost.

5. Why choose us?

Firstly,  comparing with many factories, our prices are more competitive.

Secondly,  We 100% test working pressure for ALL our products, and we inspect 5 times every order.
1) Inspect when the ball valves come out from the injection moulding machine
2) Inspect when adding O-rings
3) Inspect when installing handle caps
4) Inspect after working pressure test
5) Inspect before packing

Finally,  After- Services will be highly satisfied. Any problems and feedbacks will be responded efficiently.
