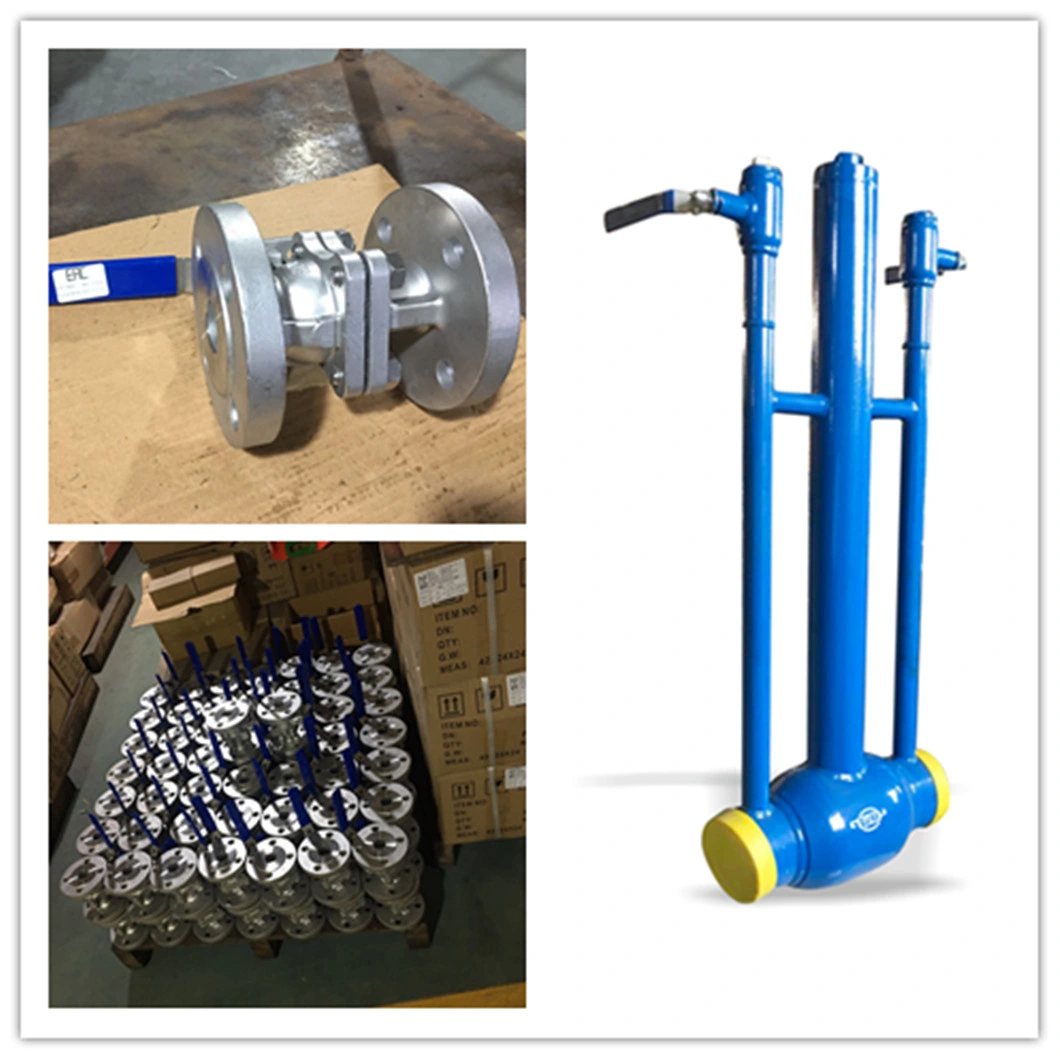

WB-111 Fully welded Standard Port Ball Valve for Natural Gas
Features:
Material:
Body: ST37.0/A106/Steel 20
Ball: SS304
Stem: 2Cr13
Stem seal: FPM or VITON
Ball seal: RPTFE (PTFE+C)
*The stem height and face to face dimension according to client's requirements.

Main Parts and Materials

1
Body Pipe20#10BearingMild Steel
2Connection Pipe20#11Branch Pipe20#
3Ball30412Stem O-RingFPM
4SeatPTFE+C13GasketGraphite
5Seat O-RingFPM14Packing Gland304
6Support Ring60Si2Mn15Stop Block304
7Disc Spring60Si2Mn16Circlip65Mn
8Stem2Cr13(304)17Lever25#
9Thrust GasketGraphite18Hexagonal Screw35#

Main Dimensions
DNPNLDG1G2Hhts
15402301033.721.385422115
20402301542.426.790402.3115
25402302048.333.795402.6150
32402602560.342.4100382.6150
40402603276.148.3130502.6170
504030039.588.960.3135502.9170
65253005010876.1150532.9290
80253006512788.9175653.2310
1002532581.5159114210753.6380
12525325102193.7140235774400

Company Overview

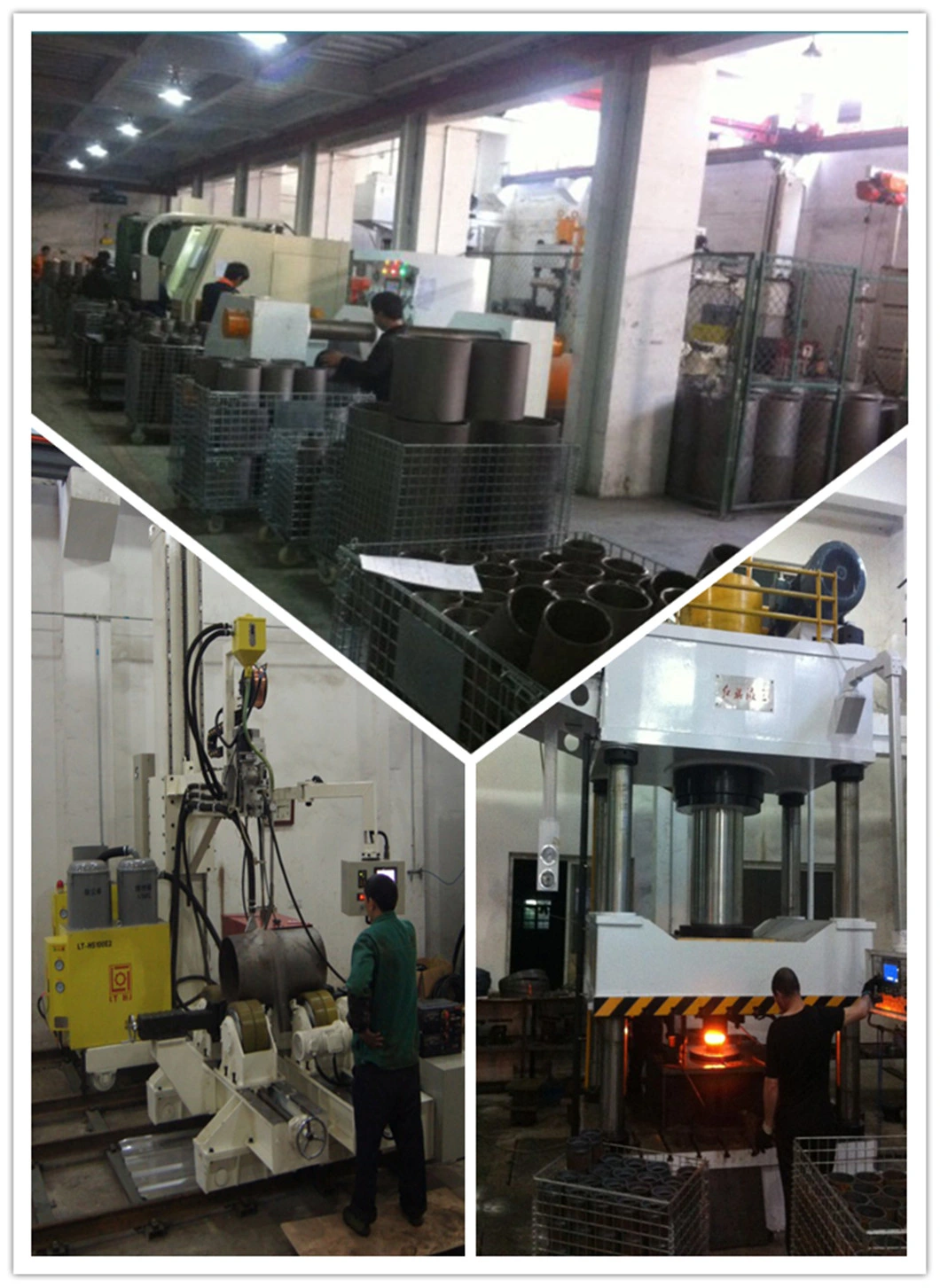

Zhejiang Wenbao Valve Co.,Ltd was established in 1985. The main products range are as following: Fully Welded Ball Valve,1PC/2PC/3PC Flanged Ball Valve, Threaded Ball Valve, Mini Ball Valve, High Pressure Ball Valve, Pneumatic Ball Valve, Electric Ball Valve, Sanitary ball valve, Ball valve with mounting pad and other valves like gate, globe, check valves and Strainer, etc. Main material include: Stainless steel, Cast Steel, Forged Steel and Brass, etc. The products manufactured as per API, ANSI, JIS, ISO, BS, JB and GB, and have CAD valve design and quality testing center. The products are widely used in chemical industry, oil, metallurgy, light industry, electric power, food, pharmacy, civil industry, fiber industry, liquefied natural gas, liquefied petroleum gas, steel mills, heating pipes, etc. Our company passed the ISO 9001:2008, Standards Organization of Nigeria(SON), International Quality Award Certificate, Manufacture License of Special Equipment, KC of South Korea,CE of Europe, etc.
