Forged stainless steel ball valve closing valve body processing

AEA CNC Customized Semi-Finished Machining or Finished-Machining Valve Forging(Valve Ball,Valve Body,Valve Closure,Valve Cover,Valve Stem,GlandProduct Name: Steel ball for ball valves, Valve SphereProduct Type: trunnion ball, floating ball, spigot mounted, stem ball, three way ball, segmented ball, V type ball,Size Range:Ball fo

Featured Products

AEA CNC Customized Semi-Finished Machining or Finished-Machining Valve Forging(Valve Ball,Valve Body,Valve Closure,Valve Cover,Valve Stem,Gland

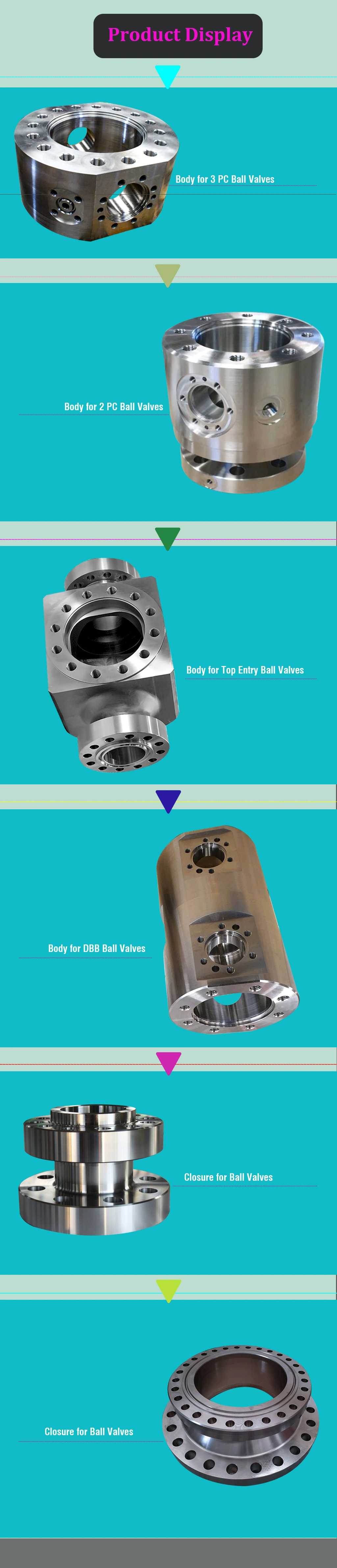

Forged Stainless Steel Ball Valve Closure Valve Body Machining
Product Name: Steel ball for ball valves, Valve Sphere
Product Type: trunnion ball, floating ball, spigot mounted, stem ball, three way ball, segmented ball, V type ball,
Size Range:
Ball for floating ball valve: NPS 1- 10 Inches
Ball for trunnion ball valve: NPS 1- 60 Inches
Pressure Rating: ANSI 150~2500Lbs, JIS 5K~30K, PN16~420
Sphericity:
 ØNPS 1- 12 Inches: Minimum 20  micron (ìm )
 ØNPS 12- 60 Inches:  Minimum 30  micron (ìm )
Product Standard: ANSI, UNI, DIN, JIS, EN. or as customers' drawings
Base Materials:
ØCarbon Steel: ASTM A105,ASTM A350 LF2 LF3,LC1,LC2,LC3,
ØStainless Steel: ASTM A182 F304,F304L,F316,F316L,F317,F317L,F321,F51,F53,F6a/AISI 410,420
ØAlloy Steel: A564 630(17-4PH), Monel, Inconel…
ØBrass/Bronze: UNS C37700, UNS C92200, UNS C83600, UNS C84800…
Surface Coating:
ØENP ,
ØChrome Plating,
ØTungsten Carbide,
ØChrome Carbide,
ØStellite,
ØInconel
A.E.A manufactures single balls or kit Seats and Ball from 1/2 up to 60 Inches.

Forged Stainless Steel Ball Valve Closure Valve Body MachiningDESIGN
AEA's engineering and R&D team has various experience in ball valve design by using advanced technology and know-how, software and testing equipments to meet all the requirements from our customers. A R&D lab is specially built for studying and testing valve innovations.

Forged Stainless Steel Ball Valve Closure Valve Body MachiningForged Stainless Steel Ball Valve Closure Valve Body MachiningLAPPING
For Metal seat ball valves, lapping process is vey import. AEA have rich experiences on it. the kit's seats and balls, lapping operation is carried out after the coating operation.

GRINDING
Grinding balls and seats after welding / after TCC.
Dimension range is from 2" to 48".

Forged Stainless Steel Ball Valve Closure Valve Body Machining
AEA VALVE is a professional ball valves and related components manufacturer integrating design, production, sale and service, including ball, seat ring, closure body and other forgings, international quality, competitive price.

MACHINING
AEA Possesses the advanced equipments, including various machining, machining center, CNC Lathes, Boring machine, CNC grinding machine, Drilling machine, Milling machine, Planning machine,etc


Forged Stainless Steel Ball Valve Closure Valve Body MachiningForged Stainless Steel Ball Valve Closure Valve Body MachiningForged Stainless Steel Ball Valve Closure Valve Body Machining
QUALITY
All the inspection and testing results of the materials and valves are registered in our quality system to support ongoing quality control efforts. All record of valve series numbers, inspection/testing procedure and results, operator information, are traceable.

Forged Stainless Steel Ball Valve Closure Valve Body MachiningINSPECTION
We are able to provide any kind of NDE ( Non-Destructive Examination) tests required.
PT (Penetrant test)
UT (Ultrasonic test)
PMI  (Positive material Identification)
MT  (Magnetic test)
Thickness test (for cladding, plating or coating)
Alcohol Test (for MTM kits)
Corrosion Test

All the inspection and testing results of the materials and valves are registered in our quality system to support ongoing quality control efforts. All record of valve series numbers, inspection/testing procedure and results, operator information, are traceable.


Aim at the goal of "leading in China and top tanking in the world", taking quality as the base, centering on people, and regarding
To services as the concept and reputation as the belief. AEA is seeking excellent product quality, provide perfect service and quality products.

Forged Stainless Steel Ball Valve Closure Valve Body MachiningForged Stainless Steel Ball Valve Closure Valve Body MachiningForged Stainless Steel Ball Valve Closure Valve Body Machining
