Product Description

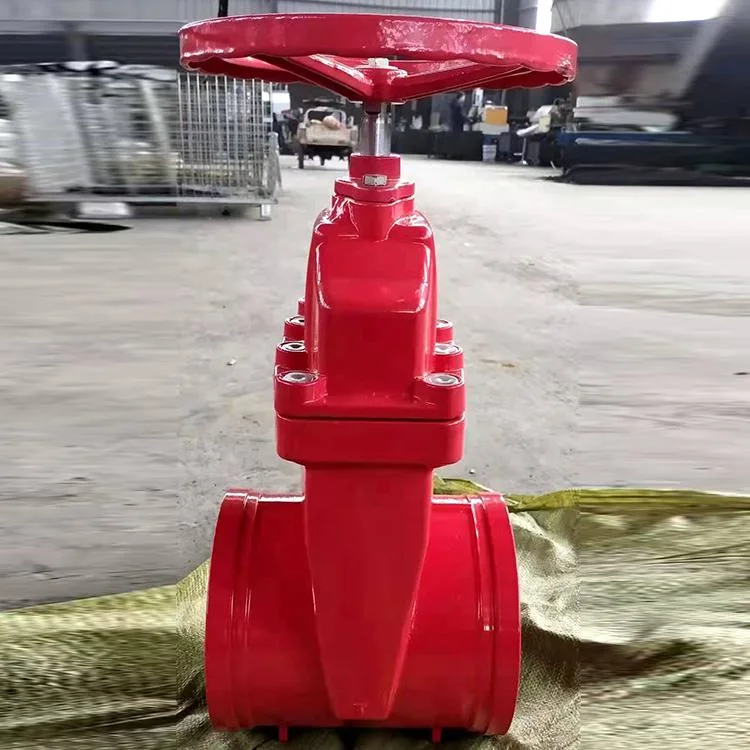

Cast iron GGG50 PN16 NRS Groove gate valve ductile iron fire valve socket gate valve
Grooved gate valve product description:
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

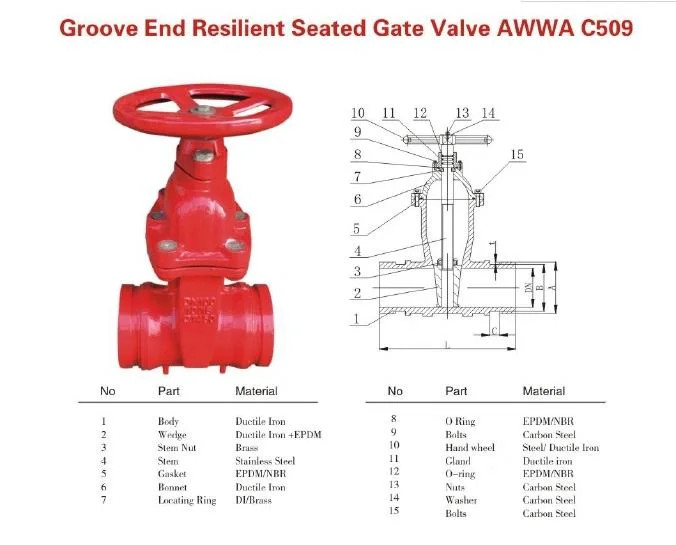

Grooved gate valve Materials of major parts:
Grooved gate valve main size:
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 250 | 270 | 280 | 300 | 325 | 350 | 400 | 450 | 500 |
| H | 417 | 452 | 530 | 607 | 720 | 790 | 885 | 1014 | 1190 |
| C | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 |
| X | 18 | 18 | 18 | 18 | 18 | 23 | 23 | 23 | 23 |
| G | 102 | 122 | 138 | 158 | 188 | 212 | 268 | 320 | 370 |
| D(PN10) | 165 | 186 | 200 | 220 | 250 | 285 | 340 | 395 | 445 |
| D(PN16) | 165 | 186 | 200 | 220 | 250 | 285 | 340 | 405 | 460 |
Grooved gate valve Performance specification:
Normal pressure (Mpa) | Body test pressure | Sealing test pressure | Applicable medium | Applicable temperature |
| (Mpa) | (Mpa) | (°C) | ||
| 1 | 1.5 | 1.1 | water | |
| 1.6 | 2.4 | 1.76 | 0~80 | |
| 2.5 | 3.75 | 2.75 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory Located In Hebei, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.
